用Alias Studiotools軟件和手繪板手繪剃須刀教程
1a) -Upon opening Alias go FILE >NEW.（新建一個文件）
1b) -Change to paint mode PREFERENCES>WORKFLOWS>PAINT （將模型模式轉換到繪圖模式）
(Alias view ports can be changed from modelling(grey background) to paint which is white. This Also brings up the properties tools on the right to edit brushes and colours etc..)
- Choose any view port and expand it (front, right, top, perspective) it doesn’t matter because wherever you start drawing it creates a plane canvas normal to the view.
1c) To get Layers up you select WINDOWS>EDITORS>LAYER EDITOR. （打開圖層 類似photoshop的）This layer box is the same as photoshop. When first opened the box may only contain canvas so expand it to see layers within canvas. The menu options in this box have all the layer things like merge, new layer etc..
Also a very important step is to increase the quality of the image by going to PREFERENCES>GENERAL PREFERENCES> then go to paint and select HIGH quality.
I found it really hard without knowing this at first because the lines become jaggy at certain random zooms （選擇高質量模式）
2) Now here I was being really rough. On a new layer I quickly drew some general lines. You may have done some form exploration on paper and looked at other shaver photos but for this tutorial I just made it up without to much fussing over design. （在一個新圖層上粗繪）
3) On a new layer above the ‘rough lines’ I redrew the shaver and now added some design changes. The layer below is made transparent by 90% via click and dragging the ‘1.0’ number to the right and the layer name.（在剛才粗線條圖層之上 重新描繪）
4)Next a third layer is created for final lines. My tactic to making the lines look dynamic is the use calligraphic line weights i.e. thick to thin. Here I rotated the canvas to draw the lines on my tablet. If you want you can erase the lines back but they look cool left for now. To rotate the canvas zoom out (shift +alt+right click) enough to see the canvas edge and marking menus (shift +ctrl+middle mouse) select rotate and click canvas edge and use middle mouse to rotate. （在第3個圖層上繪制最終線條）

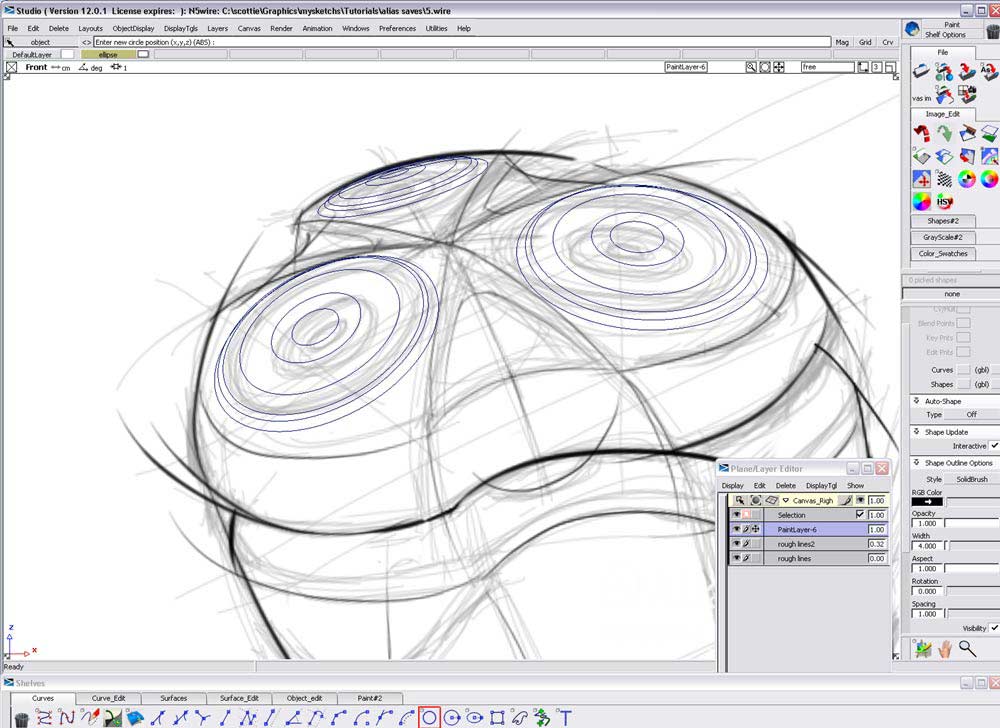

5) Now to make elipses I used curves and copied and pasted into position. Look at modelling tutorials to find out how. Then with pencil hold ctrl+alt to snap the pencil to curve and draw around elipse.（鉛筆工具 同時按住ctrl+alt 可以追蹤曲線）
6) Added in some more little lines and get rid of rough lines layer. Finished lines!!!（加一些小線條 完成線條處理）
7) Add new layer and with black airbrush get the values right. This is just one way which I found quick.（上色階段）
